Ordinary Lathe Guide Rail Width of 600 mm of Heavy-Duty Cw6180b Horizontal Manual Lathe
Product Description:
● Ideal for turning lengthy workpieces
● Bedways surface treated with supersonic frequency hardening
● High rigidity and accuracy in the spindle system
● Headstock equipped with clutch for enhanced safety and reliability
● X and Z axis with centralized ballscrew
● Features a centralized lubrication system
Product Application (lathe machine)
The machine is mainly suitable for cutting the workpiece inside and outside round cylindrical, cone and other rotating parts, machinable various commonly used metric, inch, module and diametral pitch thread, and broaching oil groove and keyway.
This series lathe machine is suitable for internal and external turning, tappering, and other rotating faces, metric, module and inch threads, as well as drilling and pull oil slot.
This machine could machining steel, casting, nonferrous metals and etc.
The dimensional accuracy of machined workpiece could reach to IT6-IT7, and with good surface roughness.
The Machine with handle breaker, easy to operate, safe and reliable.
Machine Specification
Technical items
Model | CW6163
/
CW6263 | CW6180Q
/
CW6280Q | CW6180B
/
CW6280B | CW61110Q /
CW62110Q | CW61125Q
/
CW62125Q | CW61125B | CW61160B | CW61160 | CW61200 | CW61250 | |
| Swing diameter over bed | 630mm | 800mm | 800mm | 1100mm | 1250mm | 1250mm | 1600mm | 1600mm | 2000mm | 2500mm | |
| Swing diameter over carriage/cross slide | 350mm | 480mm | 480mm | 800mm | 920mm | 860mm | 1200mm | 1200mm | 1600mm | 2100mm | |
| Swing diameter over gap/saddle | CW6163-
No gap | CW6180Q-
No gap | CW6180B-
No gap | CW61110Q--
No gap | CW61125Q--No gap |
No gap |
CW6263-
800mm | CW6280Q-
1000mm | CW6280B-
1000mm | CW62110Q--
1300mm | CW62125Q--1500mm |
| Max. Length of workpiece | 1500mm; 2000mm; 3000mm;4000mm; 5000mm; 6000mm; 8000mm; 10000mm; 12000mm; 14000mm; 16000mm; 18000mm; 20000mm |
| Max. Weight of workpiece | 2 tons | 2 tons | 2.5 tons | 2.5 tons | 2.5 tons | 6 tons | 6 tons | 16 tons | 16 tons | 16 tons | |
| Spindle hole diameter | 105mm | 105mm | 105mm | 105mm | 105mm | 130mm | 130mm | 130mm | 130mm | 130mm | |
| Guide rail width | 550mm | 550mm | 600mm | 600mm | 600mm | 755mm | 755mm | 1100mm | 1100mm | 1100mm | |
| Main motor power | 11 kw | 11 kw | 11 kw | 11 kw | 11 kw | 22 kw | 22 kw | 22 kw | 22 kw | 22 kw | |

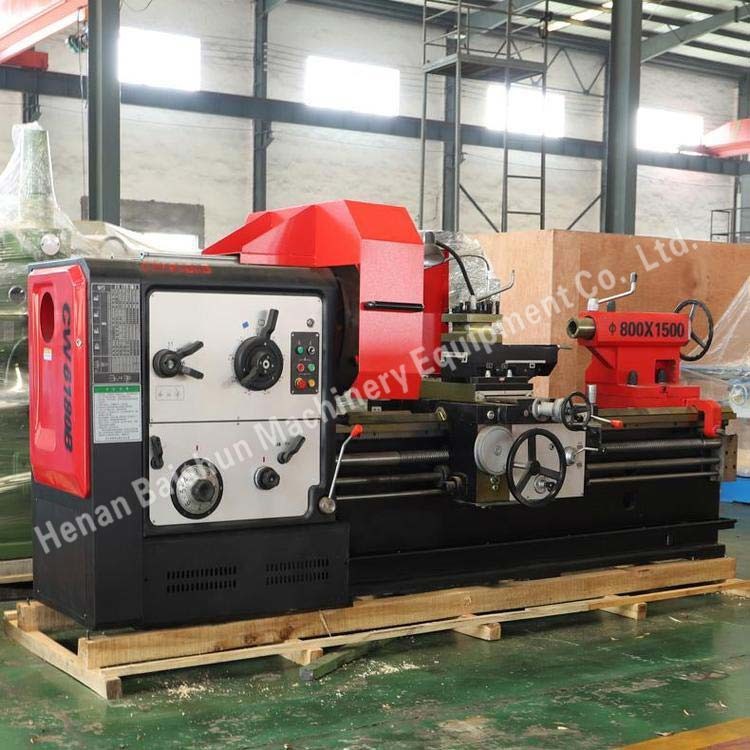

Machine Piceture
